Product Introduction of Boron Nitride (BN) Crucible

Cersol’s Boron Nitride Crucible (BN Crucible) series stands out as an ideal solution for high-temperature industrial applications. Engineered with high-purity boron nitride and advanced manufacturing techniques, our BN Crucibles deliver exceptional performance under extreme conditions. Below are the key advantages and typical applications:

Core Performance Advantages

1. Proven Reliability:


   • Cersol BN Crucibles have been rigorously tested and trusted by leading global institutions, including Japanese AlN/Si₃N₄ substrate manufacturers, MIT (Massachusetts Institute of Technology), and University of Technology Sydney. Their validation underscores our products’ unmatched performance in critical applications, from advanced material research to industrial-scale production.

2. Ultra-High Purity:

   • C-BN-H features 99.7% boron nitride (BN-99.7%), ensuring superior chemical stability and corrosion resistance for high-purity metal evaporation and molten material processing.

   • C-BN-99 offers 99% purity, balancing performance and cost-effectiveness for diverse industrial needs.

3. Extreme Temperature Resistance:

   • In inert gas environments, BN Crucibles withstand temperatures up to 2100°C (C-BN-H/C-BN-99), far exceeding conventional ceramics, ensuring stability in extreme heat.

   • Under vacuum or air, long-term operational temperatures reach 1900°C and 900°C, respectively, adapting to multiple industrial scenarios.

4. Outstanding Thermal Conductivity:

   • C-BN-A3 and C-BN-S2 achieve a thermal conductivity of 85 W/m·K, significantly enhancing heat transfer efficiency for rapid heating/cooling processes, reducing energy consumption, and extending service life.

5. Superior Mechanical Strength:

   • With a maximum compressive strength of 400 MPa (C-BN-S2) and bending strength of 220 MPa, our crucibles resist deformation and mechanical stress in high-temperature, high-pressure environments.

Typical Applications

BN Crucibles are widely used in:

• Metal Evaporation & Deposition: Ideal for high-purity metal evaporation in semiconductor and photovoltaic industries, minimizing contamination risks.

• Molten Metal/Glass Handling: Resistant to corrosion from molten aluminum, copper, precious metals, and glass, ensuring continuous production.

• Powder Metallurgy & Casting: High-temperature molds and support components (e.g., C-BN-A1, C-BN-A2, C-BN-S1) enhance precision and efficiency in alloy forming.

• AlN/Si₃N₄ Substrate Sintering: Essential for high-purity sintering of AlN (aluminum nitride) and Si₃N₄ (silicon nitride) ceramic substrates, widely used in electronics and optoelectronics. Our crucibles prevent contamination and withstand extreme sintering temperatures, as validated by leading Japanese substrate manufacturers.


• High-Temperature Furnace Components: Insulating sleeves and heater protection (e.g., C-BN-Z) reliably operate in environments exceeding 1800°C.

Why Choose Cersol BN Crucibles?

• High Purity: 99.7% BN composition guarantees inertness and chemical stability.

• Temperature Resilience: 2100°C capability meets the most demanding industrial requirements.

• Rapid Heat Transfer: 85 W/m·K thermal conductivity optimizes process efficiency.

• Longevity: Robust design minimizes downtime and replacement costs.

Cersol Boron Nitride Crucibles empower high-temperature industries with cutting-edge technology, delivering reliable solutions for metal processing, material synthesis, and advanced manufacturing!

Technical Specification

Product Name	C-BN-H	C-BN-99	C-BN-A1	C-BN-A2	C-BN-S1	C-BN-Z	C-BN-A3	C-BN-S2
Product Type	Pure Boron Nitride Ceramic	Composite Boron Nitride Ceramic	Composite Boron Nitride Ceramic	Composite Boron Nitride Ceramic	Composite Boron Nitride Ceramic	ZSBN	BN-AlN	Composite Boron Nitride Ceramic
主要成分 Composition	BN>99.7%	BN>99%	BN+Al2O3+SiO2	BN+ZrO2+Al2O3	BN+SiC	BN +ZRO2	BN+AlN	BN+Si3N4
颜色 Color	乳白  White	乳白  White	灰白  White Graphite	灰白  White Graphite	灰绿 Greyish-Green	灰白  White Graphite	灰绿  Greyish-Green	灰黑  Dark gray
密度 Density  (g/cm3)	1.50- 1.60	1.95-2.05	2.20~2.30	2.25-2.35	2.40-2.50	2.75-2.85	2.75-2.85	2.20-2.30
室温电阻率 Electrical Resistivity (Ω.cm)	>1014	>1014	>1013	>1013	>1012	>1012	>1013	>1013
最高使用温度(℃)英文： Max Using Temp          空气下  In Air          惰性气体  In Inert          高真空下(长时间)In Vacuum	900 2100 1900	900 2100 1900	1000 1750 1750	1000 1800 1800	1000 1800 1800	1000 1800 1800	1000 1800 1800	1000 1800 1800
三点抗折强度  Bending Strength(Mpa)	18	30	60	85	85	100	120	220
抗压强度 Compressive Strength( Mpa)	25	45	145	145	150	220	220	400
热膨胀系数英文 Thermal Expansion (室温 ~ 1000℃)  ( 10 －6/K)	1.5	1.8	2.0	2.0	2.8	3.5	2.8	2.8
热导率 Thermal Conductivity (W/mK)	35	40	35	35	45	30	85	85
肖氏硬度 HSD	12	18	40	40	40	45	45	55
典型应用领域 Applicaitons	真空高温 High-temperature Vacuum	真空高温 High-temperature Vacuum	粉末冶金  Powder Metallurgy	粉末冶金 Powder Metallurgy	粉末冶金 Powder Metallurgy	金属铸造 Metal Casting	粉末冶金  Powder Metallurgy	粉末冶金  Powder Metallurgy
高温电炉部件  Insulators for High Temperature Furnace (高温绝缘套管等)		√	√	√	√	√	√	√
金属蒸发坩锅  Crucibles for Metal Evaporation		√					√	√
熔融金属或玻璃用各种器件  Parts for Melting Metals or Glass	√	√	√	√	√	√	√	√
贵金属或特种合金铸造模具部件  Casting Molds for Metal or Alloy				√			√	√
高温支撑等受力部件 High Temperature Support Parts				√		√	√	√
熔融金属输运管、喷嘴 Transport Pipes or Nozzles for Melting Metal		√	√	√	√	√	√	√

FAQ: “What exactly is a BN crucible and why choose it?”
Answer:
BN crucible refers to a crucible made of Boron Nitride. Its main advantages are:
Ultra-high temperature resistance: In an inert atmosphere (such as argon and nitrogen), its long-term use temperature can reach more than 2000°C;
Chemical inertness: It can withstand a variety of highly corrosive metals and compounds, suitable for metallurgy and special ceramic melting;
Thermal shock stability: It exhibits excellent thermal shock resistance to rapid temperature changes.

FAQ: “What is the maximum temperature BN crucibles can withstand in different atmospheres?”
Answer:
In an inert atmosphere (such as argon and nitrogen): Users generally report that its maximum temperature is around 2100°C, sometimes even higher;
In air or oxygen-containing environment: The temperature is generally recommended to be controlled within 900°C to avoid surface oxidation or structural damage.

FAQ: “Are BN crucibles easy to machine and maintain?”
Answer:
Processability: BN materials are brittle, but their low friction coefficient and excellent wear resistance make them easy to machine and shape by laser cutting or precision grinding with high precision.
Maintenance: The most common cleaning method is non-mechanical cleaning with inert cleaning agents; however, it is recommended to check for microcracks or wear before and after use to prevent problems during high-temperature operation.

FAQ: “How do I choose the right BN crucible for my application and what should I watch out for?”
Answer:
Choice: It depends on the temperature requirements, chemical media aggressiveness and dimensional requirements of the specific application (such as melting metals, glass, ceramic processes, etc.).
Check the technical data provided by the manufacturer (including thermal conductivity, density, porosity, etc.);
If high temperature and high pressure conditions are used for a long time, strength and thermal shock resistance should be emphasized.
For laboratory use, specifications and accuracy requirements are usually relatively loose.
Precautions for use: Check regularly for cracks or wear; when the temperature rises sharply, it is recommended to preheat the machine to reduce thermal stress shock.

FAQ: "What about the cost and market availability of BN crucibles?"
Answer:
Price range: Due to the high manufacturing process and purity requirements, the price of BN crucibles is higher than that of traditional ceramic crucibles, but due to its high temperature resistance and corrosion resistance, it plays an irreplaceable role in specific fields (such as aerospace, nuclear energy);
Supply status: At present, the world's major suppliers of boron nitride are concentrated in China, the United States, Germany and Japan. Although China's boron nitride ceramics can reach 90% of the world's top level, the price is only about one-third of the top products. Please contact Cersol to provide you with boron nitride crucibles!

Hot Pressed Boron Nitride Crucible

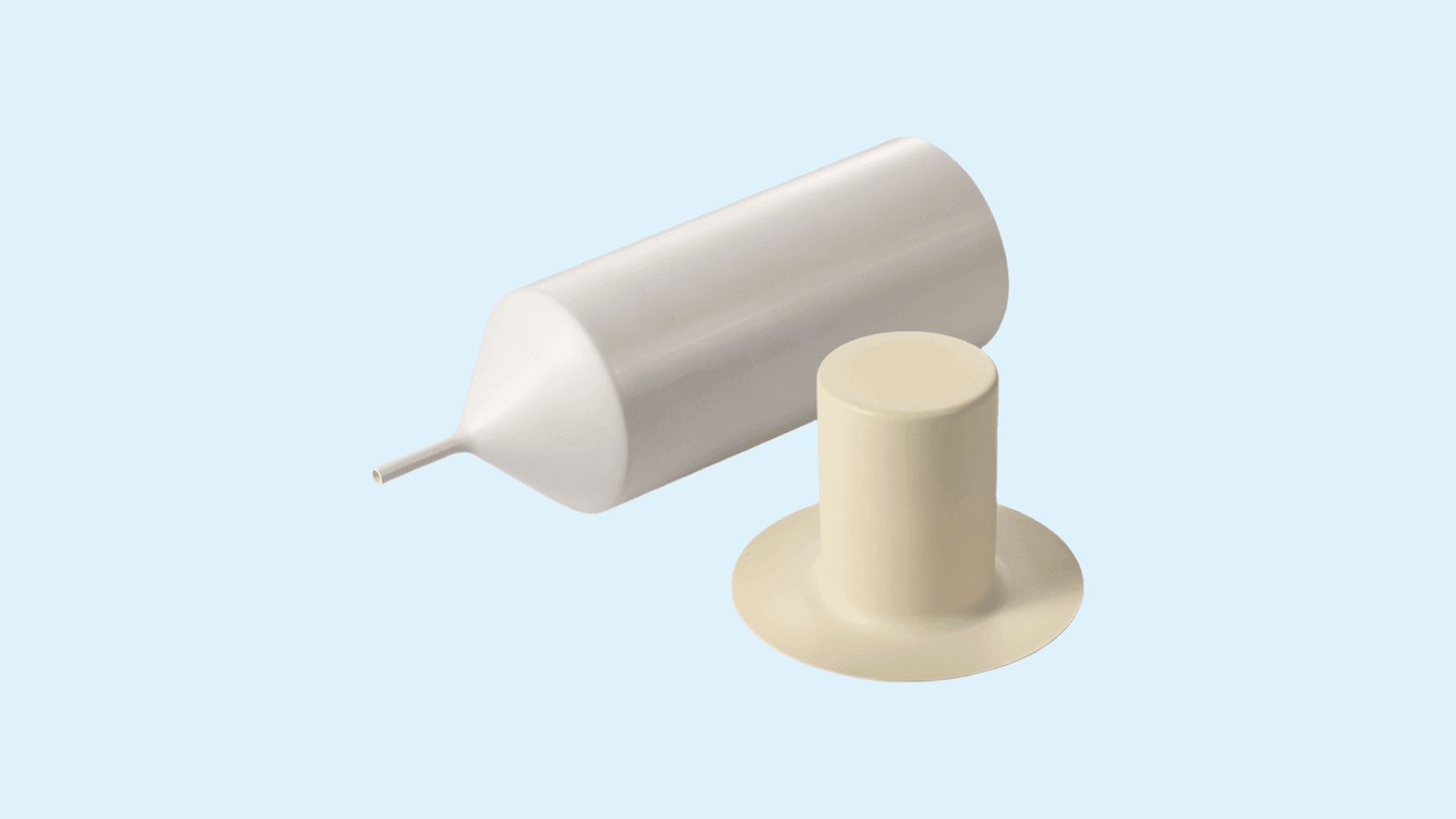

Pyrolytic Boron Nitride Crucible
